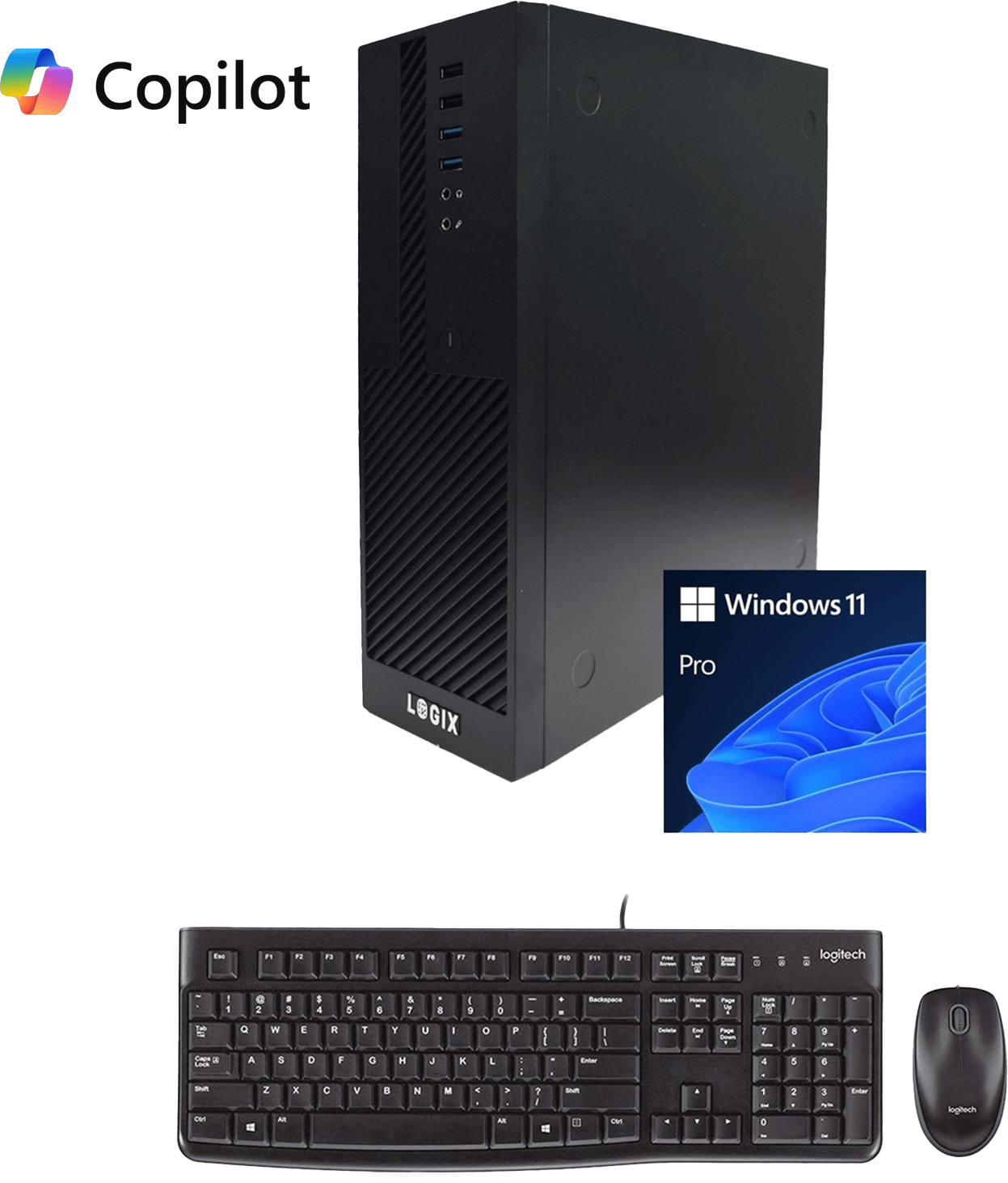

LOGIX 14th Gen Intel Core i5 Small Form Factor Desktop PC

Business

SBLOG-S4-516P

Compact and discreet without compromising performance.

• Processor14th Gen Intel Core i5
• Storage1TB PCIE Gen 4.0 NVMe SSD
• NetworkingWired: 1GbE LAN
• AccessoriesLogitech MK120 Wired Keyboard & Mouse
• Form FactorSmall Form Factor
• Memory16GB DDR4 (expandable to 64GB)

Description

The LOGIX S4-516P is a powerful, compact PC that's perfect for home or school use. With a 14th Gen Intel Core i5 processor, 16GB of Kingston RAM, and a fast 1TB NVMe SSD, it handles everyday tasks like homework, web browsing, streaming, and multitasking with ease.

Pre-installed with Windows 11 Pro and completely bloatware-free, it's ready to go out of the box. Its wired-only connection adds an extra layer of security—ideal for families and students. Quiet, stylish, and built to last, the LOGIX S4-516P is a smart, reliable choice for any home setup.

Main Features

• Compact & Stylish Case
  The discreet LOGIX small form case fits perfectly in any home setup—small enough to save space, yet roomy enough for powerful components and efficient cooling.
• Fast & Reliable Performance
  Powered by a 14th Gen Intel Core i5 processor with 10 cores and 16 threads, it runs at a base speed of 3.50GHz and can boost up to 4.70GHz—ideal for multitasking, streaming, and everyday computing.
• Smooth Multitasking
  Comes with 16GB of Kingston DDR4 memory, giving you plenty of speed for browsing, working, and entertainment. You can upgrade later if needed.
• Superfast Storage
  A 1TB Kingston PCIe 4.0 NVMe SSD means lightning-fast boot times, quick file access, and smooth performance—much faster than traditional hard drives.
• Whether you're working from home, browsing the web, watching movies, or managing family tasks, the LOGIX S4-516P delivers smooth, reliable performance. It's built with care in the UK, combining quality components with a clean, professional look—no flashy lights, just solid performance.

Why It's Great for Home Use

• Quiet & Compact – Fits easily on or under a desk without taking up space.
• Ready to Go – Comes with Windows 11 Pro pre-installed and updated. No bloatware, so you get a clean, fast experience from the start.
• Secure & Stable – Wired-only internet connection helps reduce online threats.
• Plug & Play – Includes a Logitech MK120 keyboard and mouse so you can get started right away.

Built to Last:
With trusted brands and high build standards, this PC is designed to be futureproof and reliable. It even comes with a full 3-year warranty for peace of mind.

Specification

Operating System: Windows 11 Pro
Processor: 14th Gen Intel Core i5-14400
Memory (RAM): Kingston Technology 16GB DDR4 (upgradeable to 64GB DDR4)
Storage: Kingston Technology 1TB PCIE 4.0 NVMe M.2 SSD
Graphics: Intel UHD Graphics 730 (maximum resolution 7680 x 4320 pixels @ 60Hz using DisplayPort, 4096 x 2160 @ 60Hz using HDMI)
Motherboard: Gigabyte H610M Ultra Durable Motherboard
Case: LOGIX Small Form Factor
Connections:
Front –
2 x USB-A 3.0
2 x USB-A 2.0
3.5mm HD microphone & audio

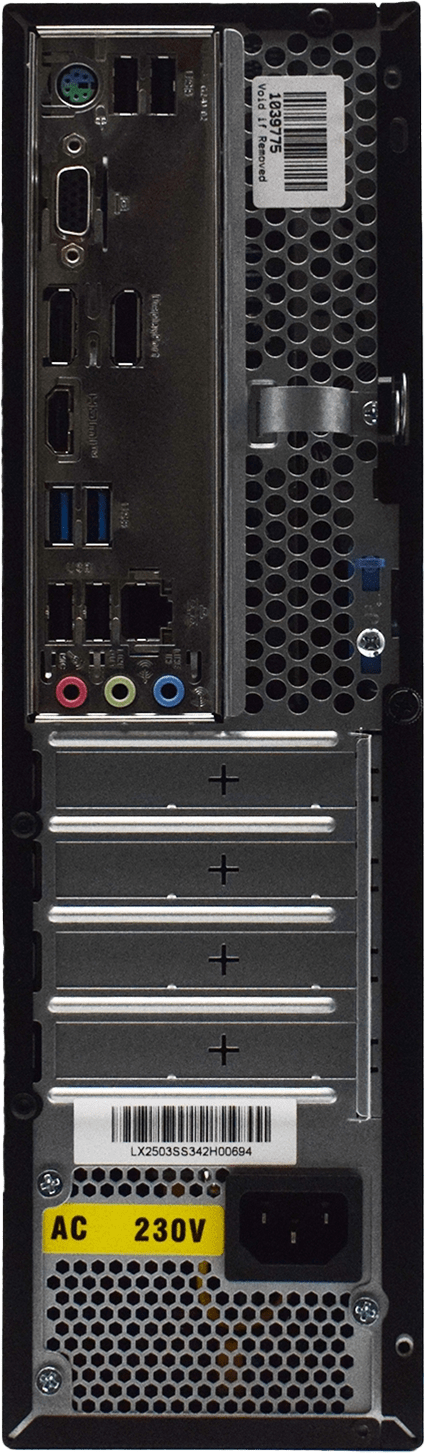

Back:
2 x PS/2
1 x VGA
2 x DisplayPort
1 x HDMI
2 x USB-A 3.2 Gen 1
4 x USB-A 2.0
1 x RJ-45 Ethernet
3 x 3.5mm Audio
Networking:
Wired: Realtek 1Gbps GbE LAN
Peripherals: Logitech MK120 Wired Keyboard & Mouse
Warranty: 3 years – parts and collection included (UK mainland only)

Processor
Intel Core i5 14400 10 Core Processor 16 Threads, 3.5GHz up to 4.7GHz Turbo Raptor Lake Refresh Socket LGA 1700 20MB Cache

Processor Cores
10

Processor Threads
16

Core Clock Speed
3.50GHz

Core Boost Speed
4.70GHz

Memory
Kingston Technologies RAM 16GB No Heatsink DDR4 3200MHz System Memory
Voltage: 1.20V
Latency Timing: CL22
Speed: 3200MHz (PC4-25600)
2 x 8GB DIMM Memory
Intel XMP Profile Support

Memory Configuration
2 x 8GB
2 Lanes (2 occupied)

SSD Drive
Kingston NV3 (SNV3S/1000G) 1TB, NVMe M.2 Interface, PCIe 4.0, 2280 SSD, Read 6000 MB/s, Write 4000 MB/s
Data storage life
160 TBW
MTBF
1,500,000 hours
Interfaces/Ports
PCIe Gen4 x4 NVMe

Format
Gen4 x4 NVMe

Max Read/Write Speeds
Read: Up to 6000MB/S
Write: Up to 4000MB/S

Hard Drive
No Additional Drive Fitted

Optical Drive
No Optical Drive Fitted

Graphics
Intel UHD Graphics 730
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.40 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units
32
Max Resolution (HDMI)
4096 x 2160 @ 60Hz
Max Resolution (DP)
7680 x 4320 @ 60Hz

Graphics Card I/O
No Graphics Card Fitted. Uses Intel On-Chip Graphics

Operating System
Microsoft Windows 11 Pro 64bit English OEI DVD Operating Software – installed and up to Date. No Bloatware

Card Reader
No Card Reader Fitted

Networking
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Power Supply
300w TFX Pre-Fitted PSU

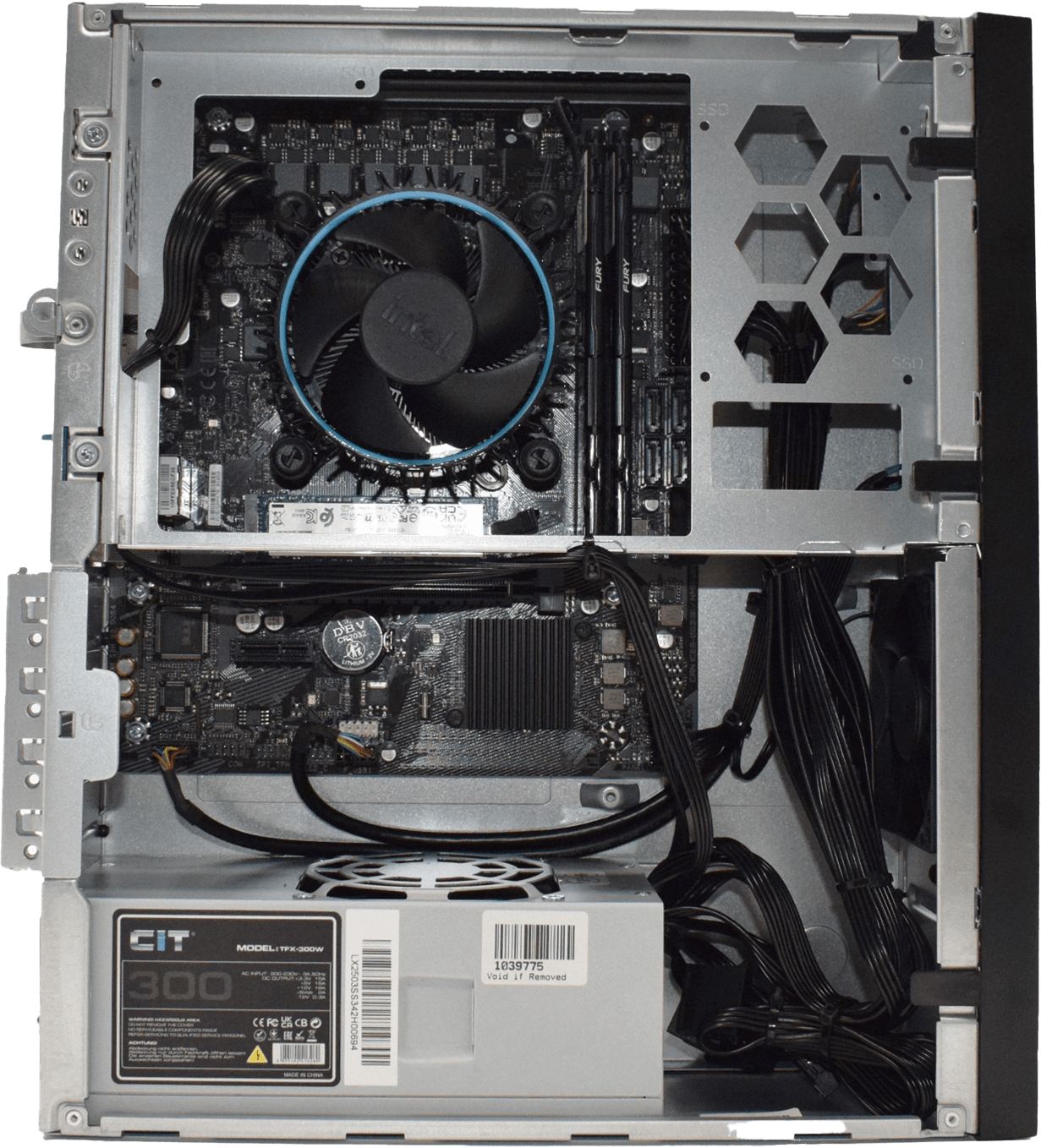

Motherboard
Gigabyte H610M S2H V3 DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 2x DisplayPorts / 1x HDMI Port

Expansion Slot
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors

Rear I/O
1 x PS/2 keyboard/mouse port
1 x D-Sub port
2 x DisplayPorts
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header

Chassis
LOGIX Small Form Purpose Built Robust Chassis

Drive Bays
5.25″ x 0
3.5″ x 1
2.5″ x 2

IO Ports
2 x USB 3.0
2 x USB 2.0
HD Mic
HD Audio
Power

Cooling
1 x 80mm fan included

Dimensions
321mm x 95mm x 283mm (W x H x D)

Package Weight
6.9 kg

Warranty
3 Years Parts & Labour Including Collect and Return (UK mainland only)
